SiC Power Module

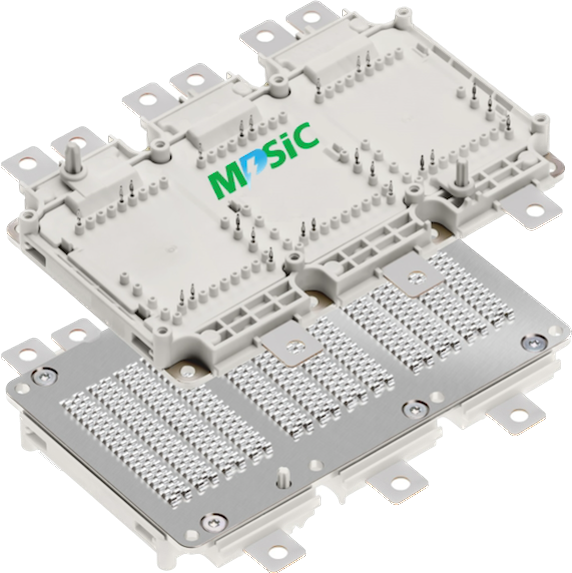

HPD Power Module
1200V/200A/400A/600A/800A Six-in-one package
| Product model | Voltage | Current | 0n-resistance | Package type | Automotive certification | Application | Specification |
| (Id @ 25℃) | (Rds_on @ 25℃) | ||||||
| M1P-1200-200A | 1200V | 200A | 4.75mΩ | HPD | AQG-324 | Electric vehicles | Download |
| M1P-1200-400A | 1200V | 400A | 3.35mΩ | HPD | AQG-324 | Electric vehicles | Download |
| M1P-1200-600A | 1200V | 600A | 2.63mΩ | HPD | AQG-324 | Electric vehicles | Download |
| M1P-1200-800A | 1200V | 800A | 1.7mΩ | HPD | AQG-324 | Electric vehicles | Download |
[Features]
• High blocking voltage and low on-resistance, increasing power density
• Low capacitance, high-speed switching for higher system efficiency
• Easy parallel connection and simple driving, improving system switching frequency
• Higher avalanche energy ruggedness
• Halogen-free, compliant with RoHS standards
• Improved reliability and high thermal conductivity using silicon nitride substrate
• High temperature tolerance silver sintering process
[Application Fields]
• New energy vehicles
• Energy storage systems
• Wind and photovoltaic systems
• High blocking voltage and low on-resistance, increasing power density
• Low capacitance, high-speed switching for higher system efficiency
• Easy parallel connection and simple driving, improving system switching frequency
• Higher avalanche energy ruggedness
• Halogen-free, compliant with RoHS standards
• Improved reliability and high thermal conductivity using silicon nitride substrate
• High temperature tolerance silver sintering process
