SiC Power Module

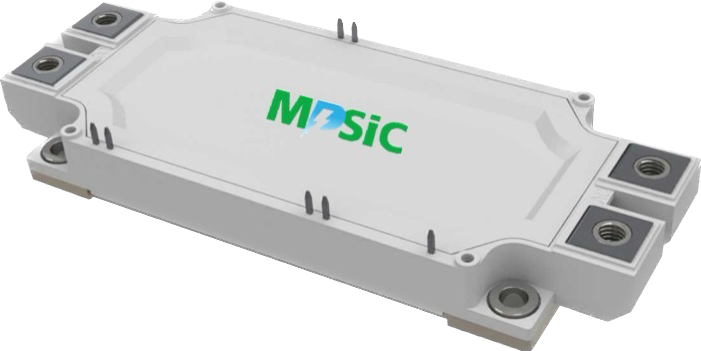

EconoDual Power Module
EconoDual (AQG-324) 1200V/400A/600A/800A/1000A/1200A
| Product model | Voltage | Current | 0n-resistance | Package type | Automotive certification | Application | Specification |
| (Id @ 25℃) | (Rds_on @ 25℃) | ||||||
| M1P-1200-400D | 1200V | 400A | 3.35mΩ | EconoDual | AQG-324 | Electric vehicles, energy storage | Download |
| M1P-1200-600D | 1200V | 600A | 2.63mΩ | EconoDual | AQG-324 | Electric vehicles, energy storage | Download |
| M1P-1200-800D | 1200V | 800A | 1.7mΩ | EconoDual | AQG-324 | Electric vehicles, energy storage | Download |
| M1P-1200-1000D | 1200V | 1000A | 1.57mΩ | EconoDual | AQG-324 | Electric vehicles, energy storage | Download |
| M1P-1200-1200D | 1200V | 1200A | 1.45mΩ | EconoDual | AQG-324 | Electric vehicles, energy storage | Download |
[Features]
• Low RDS(on) resistance, increasing power density and reducing cooling requirements
• Low switching losses, enabling high-speed switching and improving system efficiency
• Halogen-free, compliant with RoHS standards
[Application Fields]
• EV DC charger
• Solar energy
• Photovoltaic, wind power generation
• High-frequency heating devices
• Low RDS(on) resistance, increasing power density and reducing cooling requirements
• Low switching losses, enabling high-speed switching and improving system efficiency
• Halogen-free, compliant with RoHS standards
[Application Fields]
• EV DC charger
• Solar energy
• Photovoltaic, wind power generation
• High-frequency heating devices
